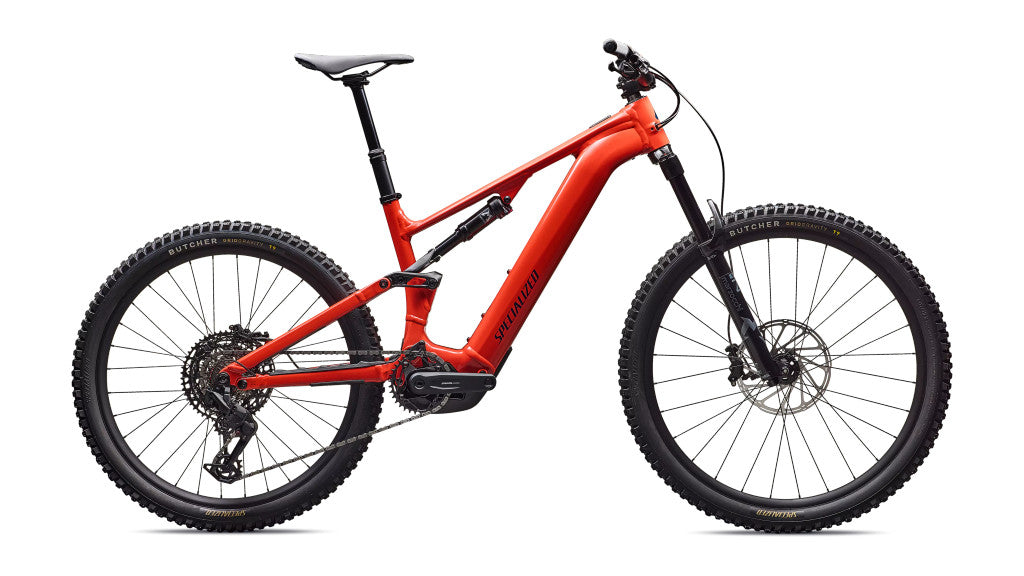

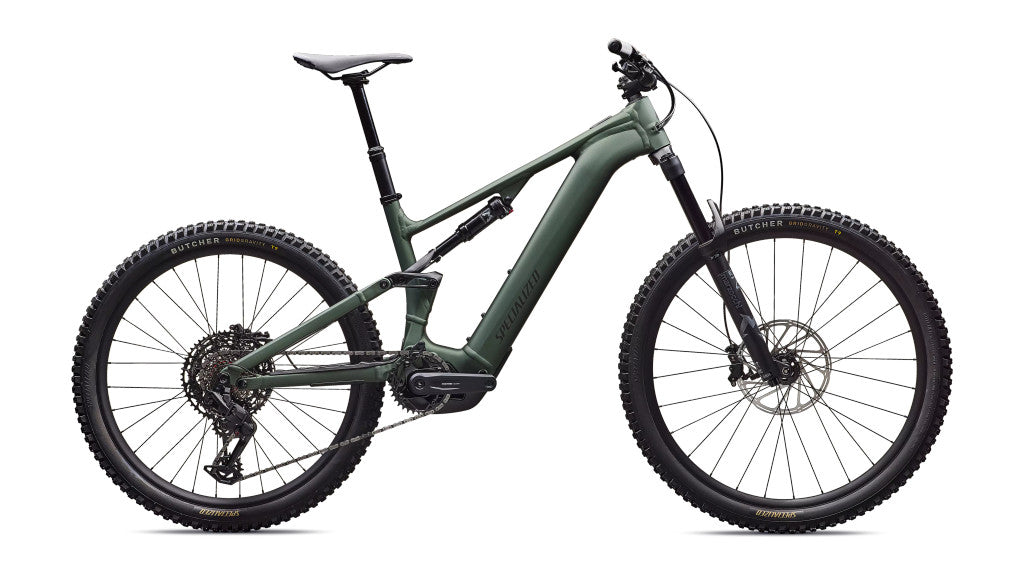

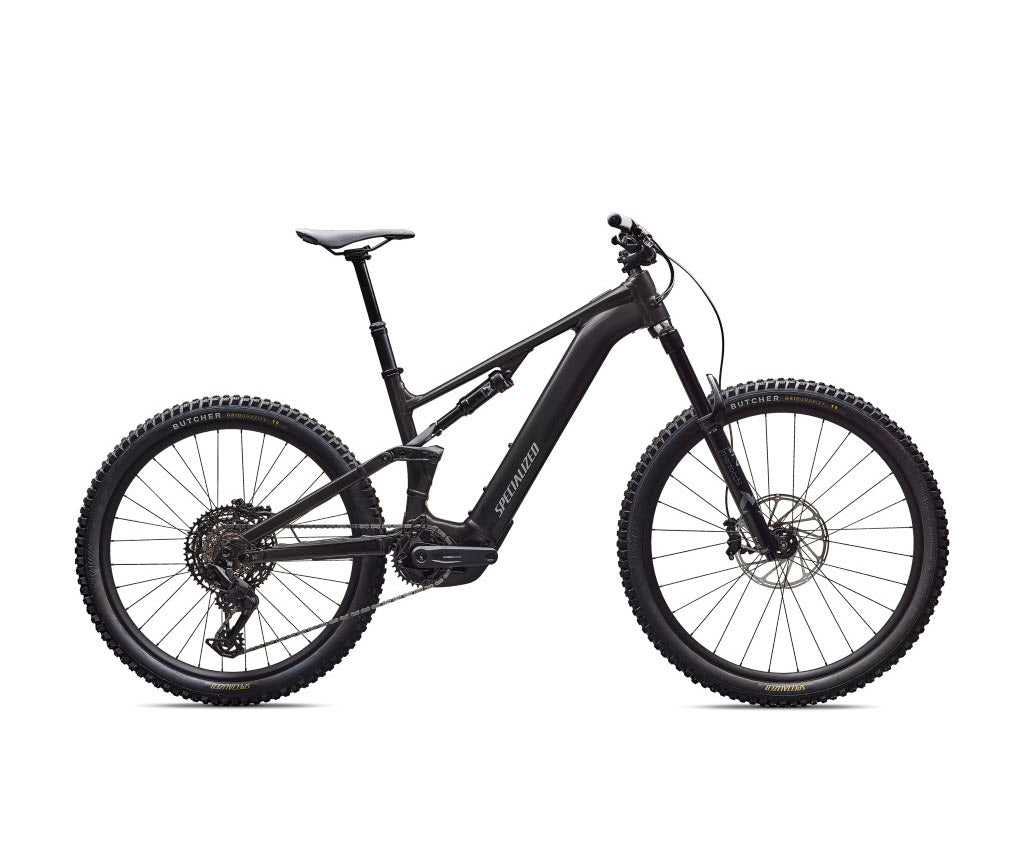

Specialized Turbo Levo 4 Alloy Electric Mountain Bike E-MTB

Specs

Frame	All new Levo 4 M5 Alloy frame, 150mm travel,, adjustable chainstay, adjustable head tube angle, adjustable bottom bracket, internal SWAT storage 148mm spacing, 29" front wheel/27.5" rear wheel, fork travel up to 180mm
Fork	Marzocchi Bomber Z1, 29", S2-S6: 160mm, S1: 150mm, sweep adjust compression
Rear Shock	Marzocchi Bomber Inline, EVOL LV air sleeve, rebound adjust
Wheels	Specialized Alloy / Bear Pawls hubs
Hubs	Front: Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h Rear: Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h
Spokes	DT Swiss Industry
Tires	Front: Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR, 29x2.4" Rear: Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR, 27.5x2.4"
Crankset	SRAM S1000 Crankset, ISIS Interface, Integrated Guard, 55mm Chainline, 155mm
Chainrings	SRAM 34t T-Type chainring, 104 BCD, steel
Shifters	SRAM 70 trigger, 12-speed, single click
Rear Derailleur	SRAM Eagle 70 T-Type
Cassette/Freewheel	XS-1270, 12-speed, 10-52t
Chain	SRAM Eagle 70 T-Type Flattop Chain
Brakes	Front: SRAM DB8 Stealth, 4-piston caliper, hydraulic disc, 220mm Centerline rotor Rear: SRAM DB8 Stealth, 4-piston caliper, hydraulic disc, 200mm Centerline rotor
Handlebars	Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, S1-S2: 780mm width, S3-S6 800mm width
Tape/Grips	Specialized Trail Grips
Stem	Alloy Trail Stem, 35mm bar bore
Seatpost	TranzX dropper, 34.9mm, S1: 100mm, S2: 125mm, S3: 150mm. S4- S5: 170mm, S6: 200mm
Saddle	Body Geometry Bridge Saddle, steel rails
Pedals	Sold Separately
Motor	All New Specialized 3.1 Motor, 101Nm torque, 666Nm power
Battery	840Wh battery
Controller/Display	All New MasterMind T3 Display System, 2.2" high resolution color screen, fully customizeable with Specialized app
Charger	Specialized 4amp charger
