A-Lectric Motorsports

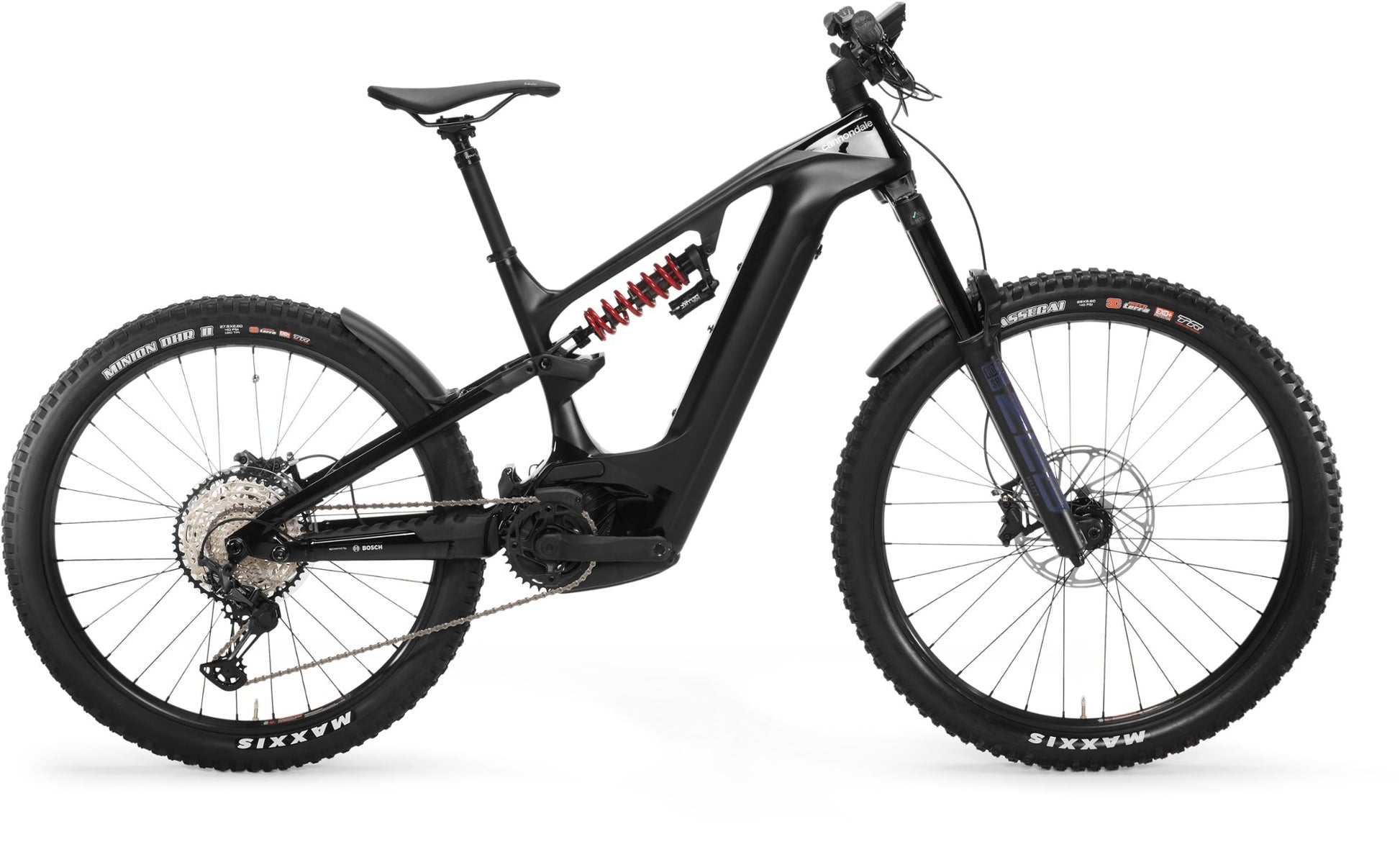

Cannondale - Moterra Carbon LT 2 Electric Mountain Bike E-MTB
Cannondale - Moterra Carbon LT 2 Electric Mountain Bike E-MTB
| E-Bike Classification |
Class 1: pedal assist up to 20 mph |
|---|---|
| Motor |
Bosch Performance Line CX 250W |
| Motor Type |
Mid-Drive |
| Motor Torque (Nm) |
85 Newton meters |
| Battery Type |
Lithium Ion |
| Battery Capacity (Wh) |
Bosch PowerTube 750 watt hours |
| Battery Removable |
Yes |
| Frame |
Moterra Neo Carbon Front Triangle, SmartForm C1 Alloy Swingarm, Proportional Response Tuned Suspension, UDH hanger, post mount brake, 1.5-1.8 in. tapered head tube, 18 mm two-bolt kickstand mount |
| Bike Suspension |
Full Suspension |
| Fork |
RockShox Zeb Select, Charger RC, 170 mm, DebonAir, 15 x 110 mm, 44 mm offset |
| Fork Travel |
170 millimeters |
| Rear Shock |
2-position mode adjust, adjustable rebound |
| Crankset |
FSA Bosch E-bike with 55 mm chainline, 160 mm, 34T |
| Shifters |
12-speed |
| Rear Derailleur |
Shimano XT |
| Rear Cogs |
10-51, 12-speed |
| Number of Gears |
12 gear(s) |
| Brake Type |
Hydraulic Disc Brake |
| Brakes |
Magura MT5 4-piston hydraulic disc, Magura MDR-P 220/203 mm, 6-bolt rotors |
| Brake Levers |
Magura MT5 Trail HC hydraulic disc |
| Rims |
WTB ST i30 TCS, 32h, tubeless ready |
| Front Hub |
Formula 15 x 110 mm thru axle |
| Rear Hub |
Shimano MT410, 12 x 148 mm thru axle |
| Wheel Size |
29 inches |
| Tires |
Front: Maxxis Assegai, 29 x 2.6 in., 3C, EXO+, tubeless ready; rear: Maxxis DHR II, 27.5 x 2.6 in., 3C, EXO+, tubeless ready |
| Tire Width |
2.6 inches |
| Handlebar Shape |
Riser Bar |
| Handlebar |
Cannondale 3 Riser, 6061 Alloy, 25 mm rise, 8 deg. sweep, 5 deg. rise, 800 mm |
| Stem |
Cannondale 2, 6061 Alloy, 35 mm, 0 deg. |
| Seat Post |
S: Cannondale DownLow Dropper, internal routing, 31.6 x 125 mm M: Cannondale DownLow Dropper, internal routing, 31.6 x 150 mm L: Cannondale DownLow Dropper, internal routing, 31.6 x 170 mm XL: Cannondale DownLow Dropper, internal routing, 31.6 x 170 mm |
| Dropper Post |
Yes |
| Saddle |
Fabric Scoop Shallow Sport, steel rails |
| Headset |
Acros integrated sealed bearing, tapered |
| Chain |
12-speed |
