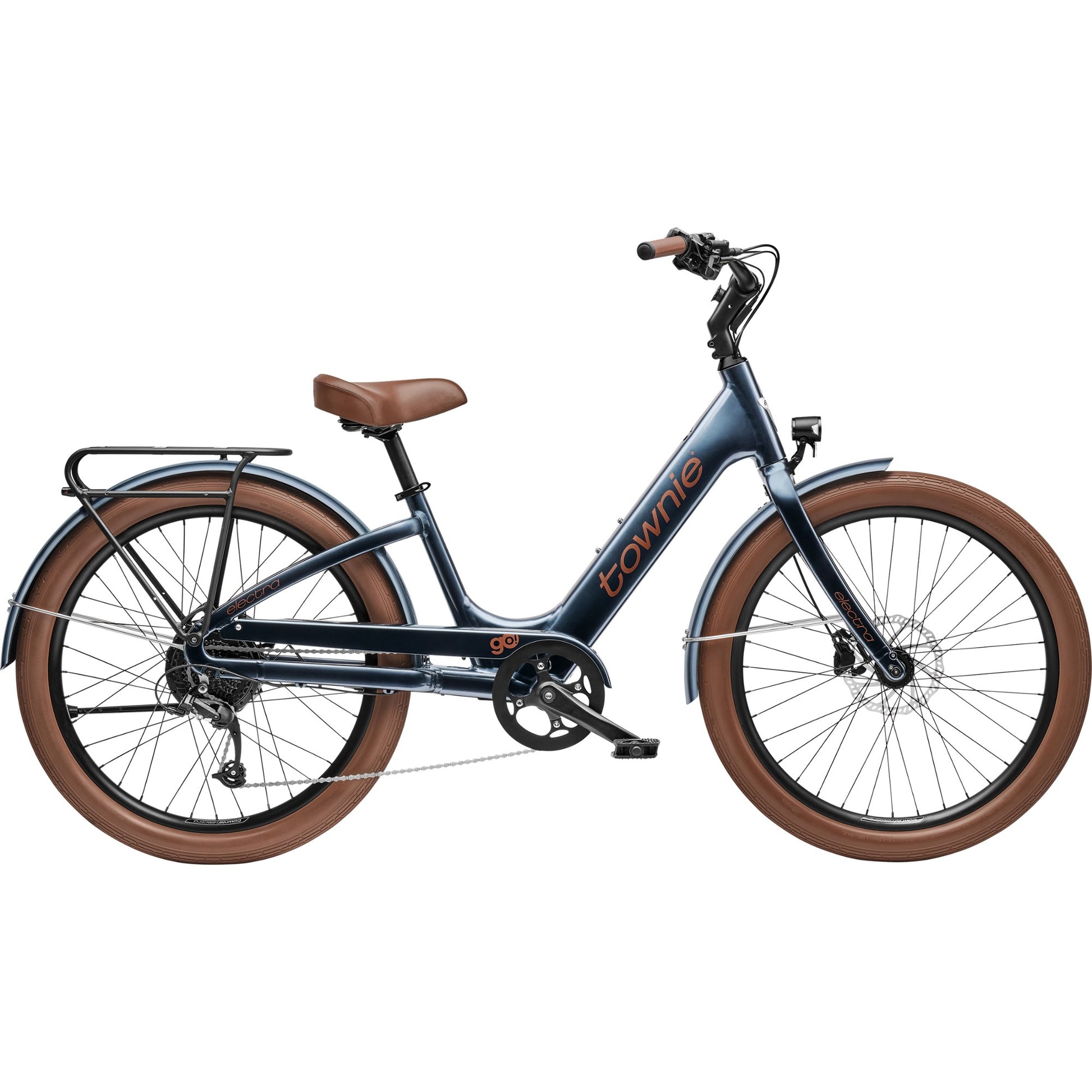

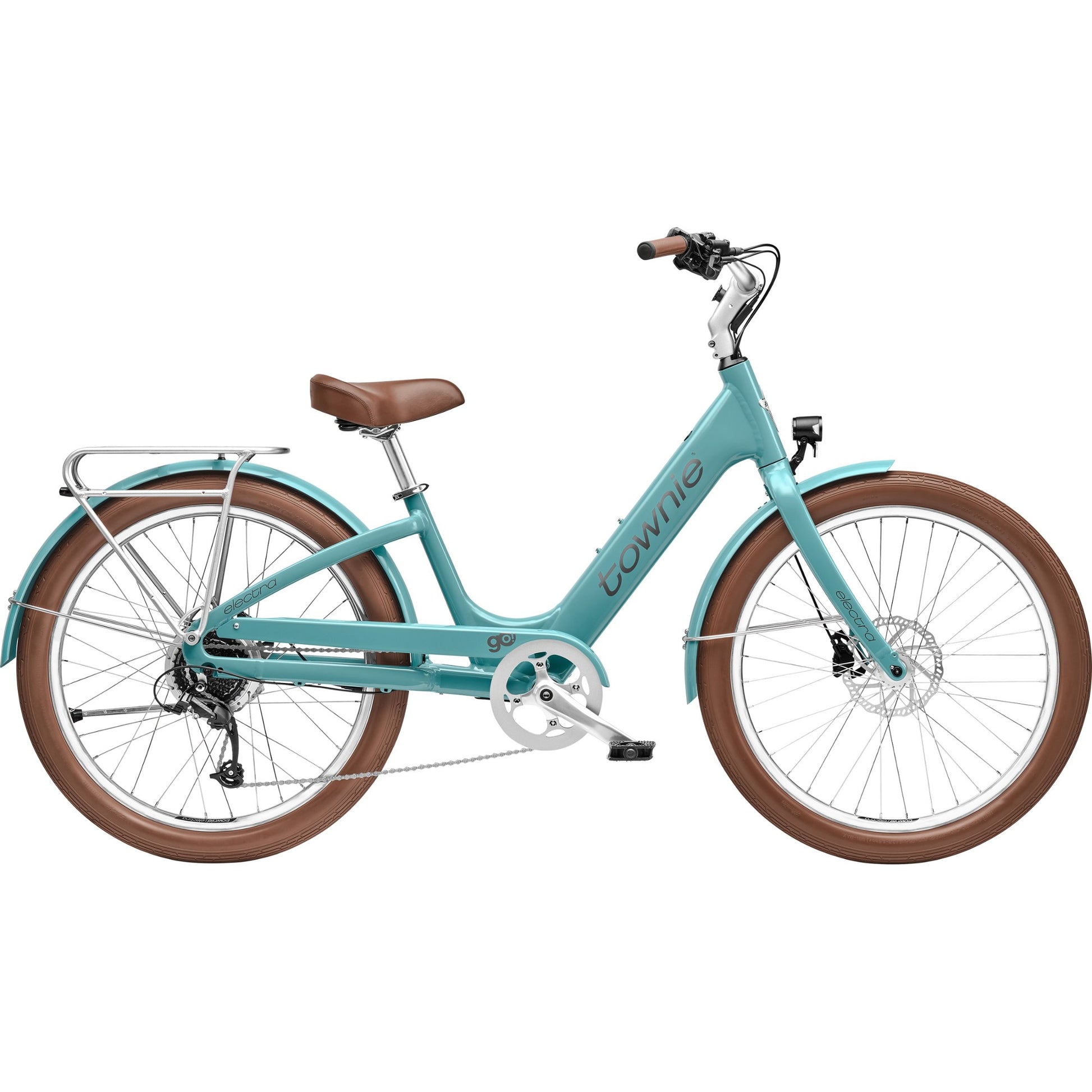

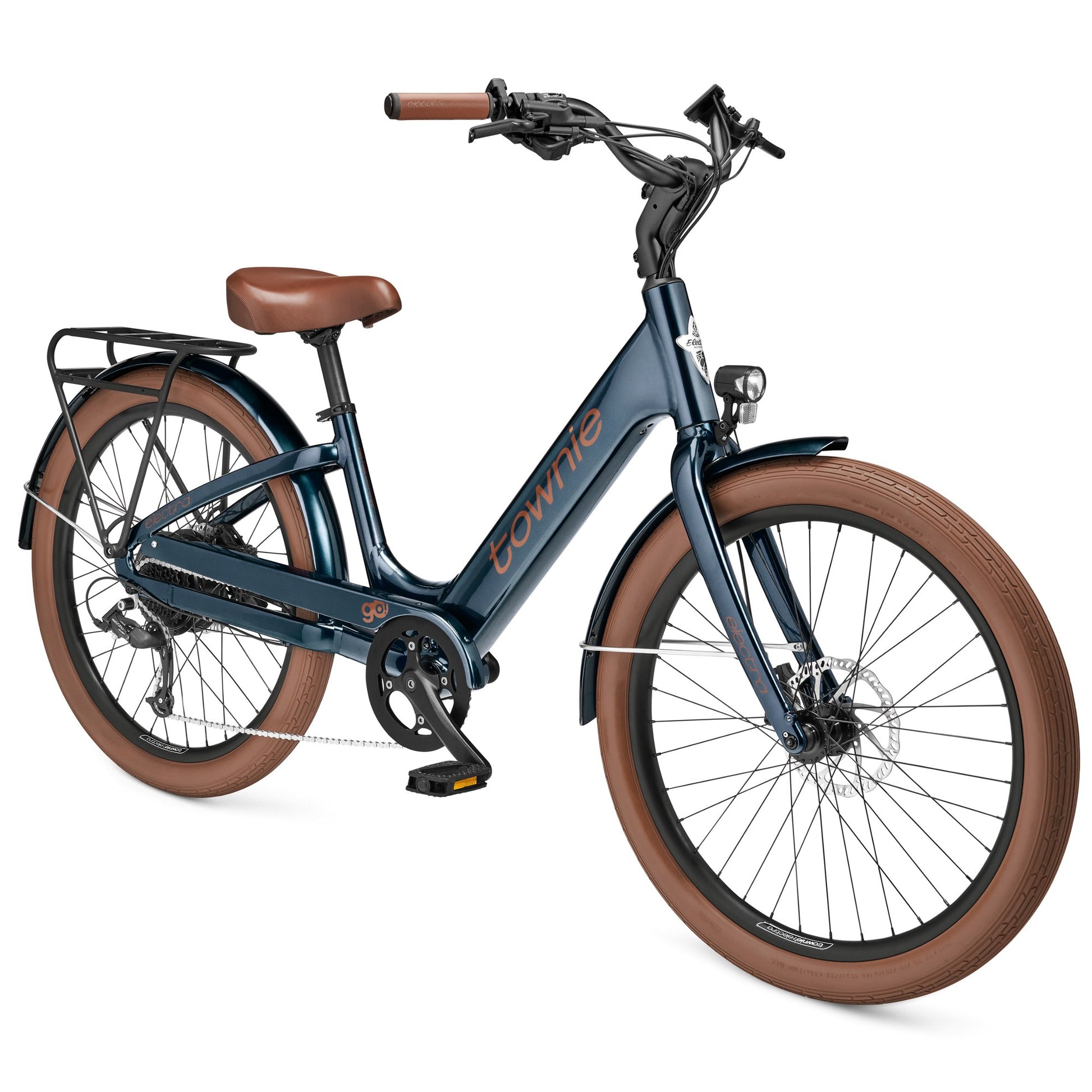

Electra - Townie Go! Throttle Electric Bike
Electra - Townie Go! Throttle Electric Bike
| Best Use |
Recreational Cycling |
|---|---|
| E-Bike Classification |
Class 2: throttle assist or pedal assist up to 20 mph |
| Motor |
Hyena 520 Wh In-tube, only removable by a bike tech |
| Motor Type |
Geared Hub |
| Motor Torque (Nm) |
60 Newton meters |
| Battery Type |
Lithium Ion |
| Battery Capacity (Wh) |
520 watt hours |
| Battery Removable |
No |
| Charge Time (hrs) |
2-5.5 hours |
| Pedal Assist Range |
Up to 50 miles |
| Frame |
6061-T6 aluminum low-step with Flat Foot Technology |
| Step-Through |
Yes |
| Bike Suspension |
No Suspension |
| Fork |
Alloy |
| Crankset |
Forged alloy, 44T, chainguard, 170 mm length |
| Bottom Bracket |
Hyena Bottom Bracket Torque Sensor 100 mm/147 mm T47 |
| Rear Derailleur |
microSHIFT Mezzo, 8-speed |
| Rear Cogs |
Shimano HG31, 11-34, 8-speed |
| Number of Gears |
8 gear(s) |
| Brake Type |
Hydraulic Disc Brake |
| Brakes |
Rush hydraulic disc, 180 mm rotor, brake switching |
| Brake Levers |
C-Star BH-286E Hydraulic disc brake lever w/ brake switch |
| Rims |
S/M: Alloy double wall, 26 in. x 36h M/L: Alloy double wall, 27.5 in. x 36h |
| Front Hub |
Alloy low-flange w/6-bolt disc, 36h, w/QR |
| Rear Hub |
Hyena Hub drive motor, 60 Nm, 500W, 36H, black |
| Wheel Size |
S/M: 26 inches M/L: 27.5 inches |
| Tires |
Electra Balloon Cruiser Tire |
| Tire Width |
2.35 inches |
| Handlebar Shape |
Riser Bar |
| Handlebar |
Alloy custom bend, 700 mm wide, 100 mm rise |
| Seat Post |
S/M: Alloy 31.6 mm x 330 mm M/L: Alloy 31.6 mm x 400 mm |
| Saddle |
Ergonomic with shock-absorbing elastomers |
| Pedals |
Resin platform with nonslip tread |
| Headset |
1.5 in., sealed cartridge bearing |
| Chain |
KMC Z8.3 RB, rust resistant |
| Weight |
S/M: 57 pounds M/L: 58 pounds |
