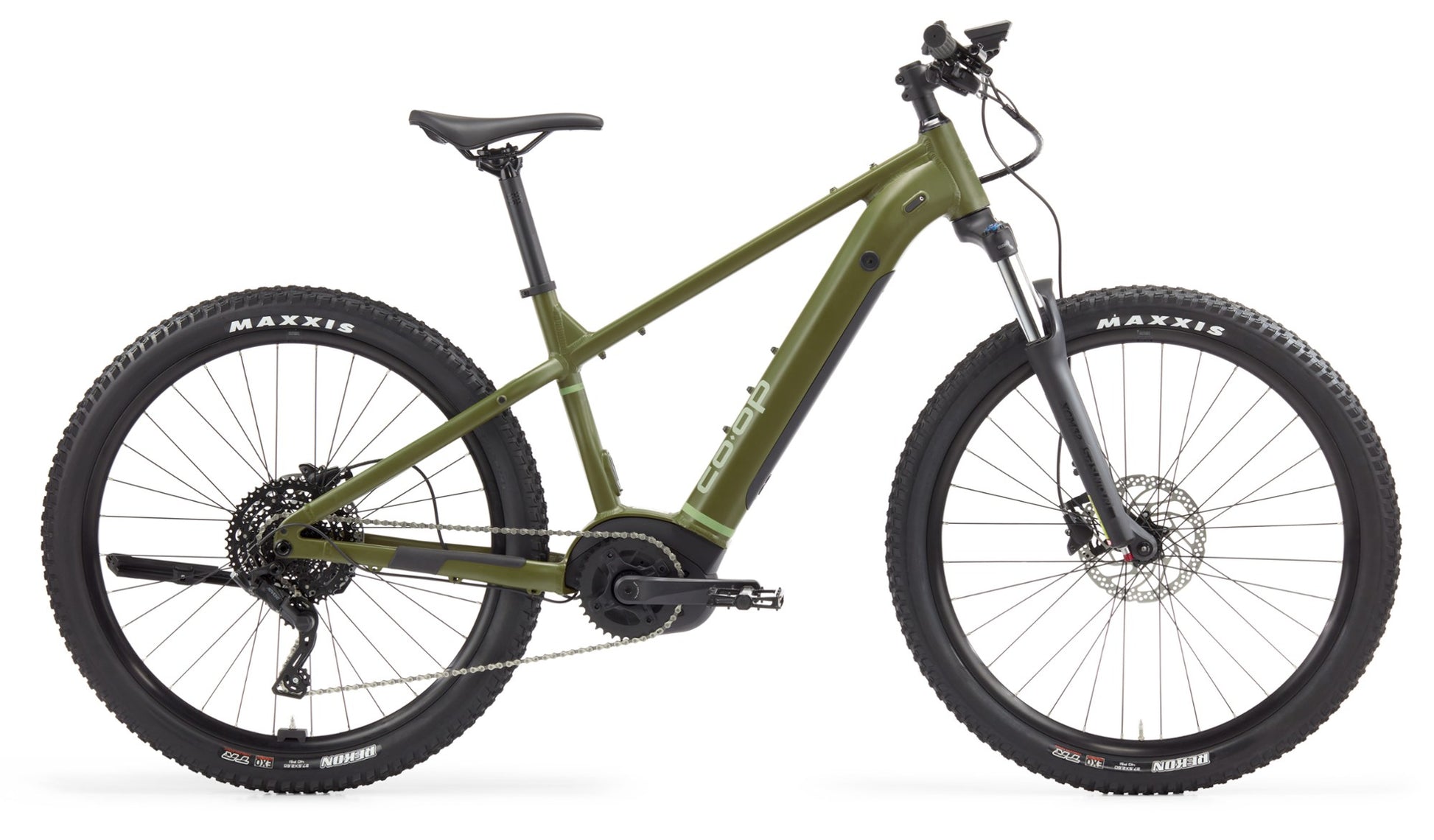

Co-op Cycles - DRT e1.1 Electric Mountain Bike E-MTB

E-Bike Classification	Class 1: pedal assist up to 20 mph
Motor	Bosch Performance Line, the smart system
Motor Type	Mid-Drive
Motor Torque (Nm)	75 Newton meters
Battery Type	Lithium Ion
Battery Capacity (Wh)	500 watt hours
Battery Removable	Yes
Charge Time (hrs)	50% charge: approx. 1.7 hours; 100% charge: approx. 4.5 hours
Frame	Co-op Cycles 6061 aluminum
Bike Suspension	Front Suspension
Fork	SR Suntour XCM32
Fork Travel	100 millimeters
Crankset	FSA CK-220 36T
Bottom Bracket	Integrated with Bosch drive unit; BNI interface
Shifters	microSHIFT ADVENT SL-M6295-R, 9-speed
Rear Derailleur	microSHIFT ADVENT RD-M619M, 9-speed
Rear Cogs	microSHIFT ADVENT CS-H093 11-46T
Number of Gears	9 gear(s)
Brake Type	Hydraulic Disc Brake
Brakes	Shimano BR-MT200 2-piston hydraulic
Brake Levers	Shimano BL-MT201 3-finger hydraulic
Rims	Co-op Cycles aluminum double-wall; tubeless-ready
Front Hub	Shimano Center Lock disc; 15 x 110 mm thru axle
Rear Hub	Shimano Center Lock disc; 12 x 148 mm thru axle
Wheel Size	27.5 inches
Tires	Maxxis Rekon EXO/TR dual-compound; 60 tpi; folding; tubeless-ready; 27.5 x 2.6 in.
Tire Width	2.6 inches
Handlebar Shape	Riser Bar
Handlebar	Aluminum riser; 12 mm rise; 6 deg. backsweep; 31.8 mm clamp diameter
Stem	Aluminum; 31.8 mm clamp diameter; 60 mm length; 3 deg. rise
Seat Post	Aluminum 2-bolt; 15 mm offset; 30.9 mm diameter
Saddle	Co-op Cycles vacuum-molded with ED black steel rails
Pedals	Alloy platform with 9/16 in. chromoly spindle
Headset	Threadless internal; 1-1/8 in. to 1-1/2 in.
Chain	KMC E9 Turbo
Weight	55 pounds
