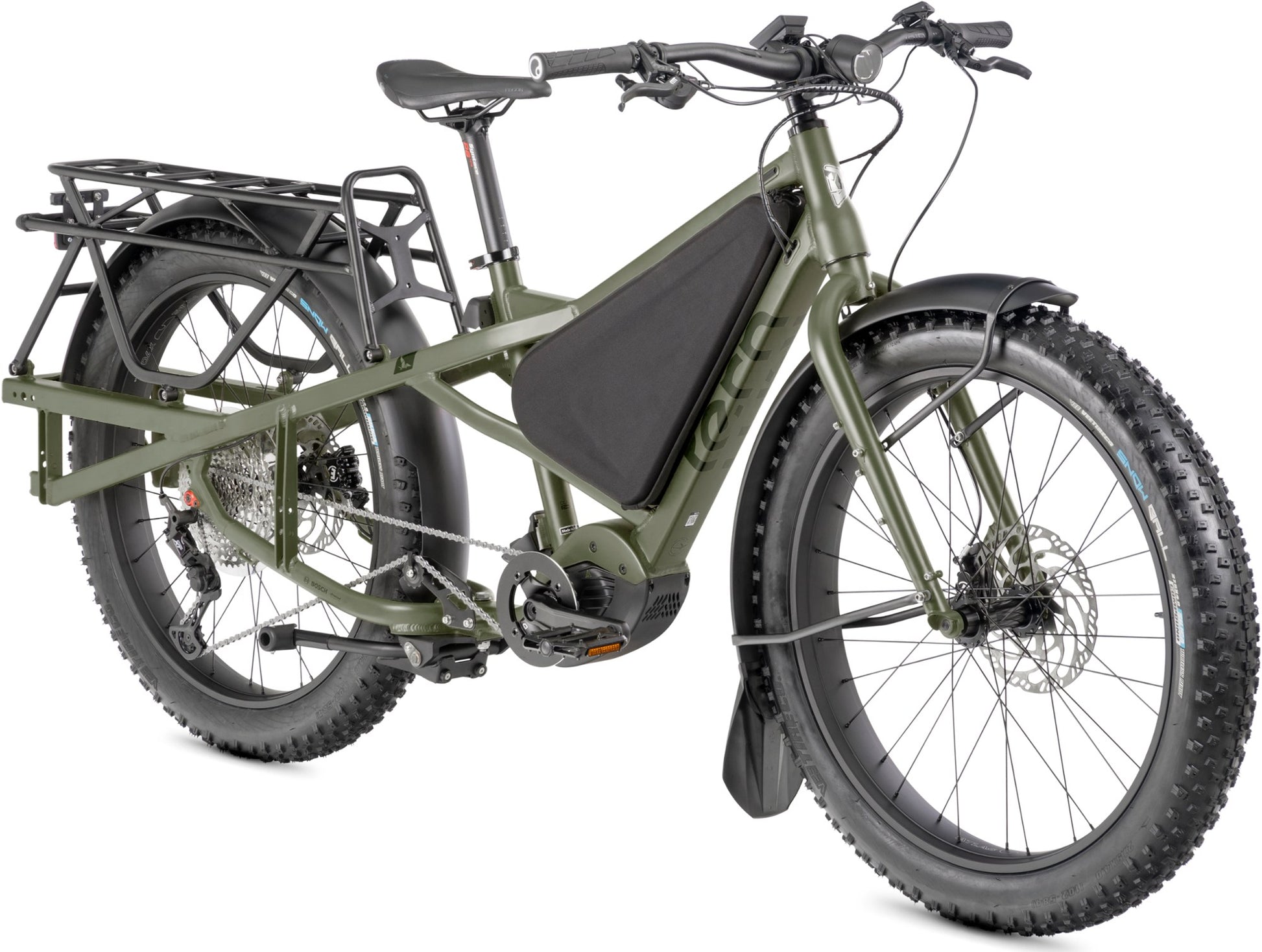

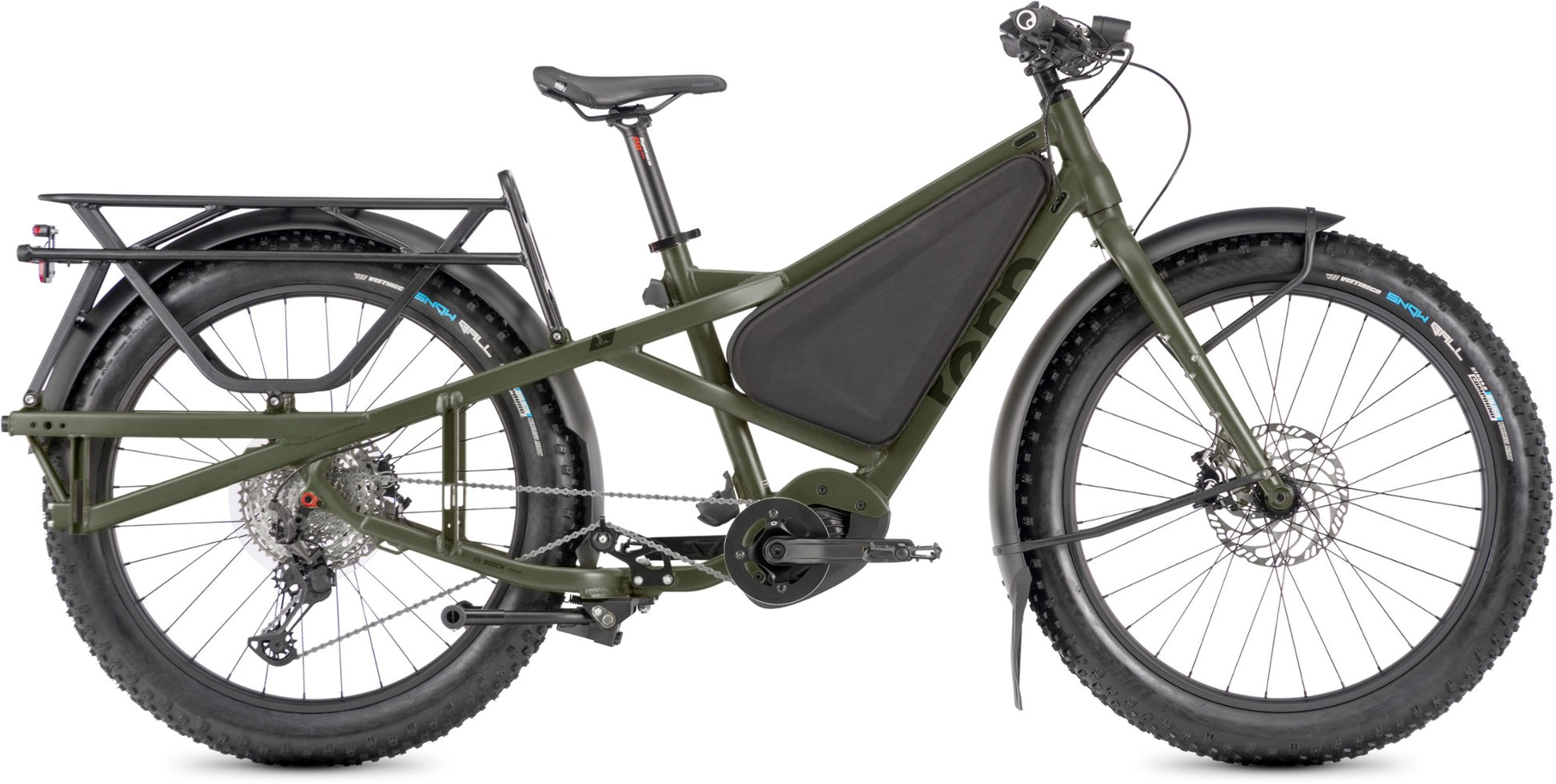

Tern - Orox S12 Electric Cargo Bike
Tern - Orox S12 Electric Cargo Bike
| Best Use |
Bike Touring Backpacking |
|---|---|
| E-Bike Classification |
Class 1: pedal assist up to 20 mph |
| Motor |
Bosch Performance CX, max speed 20 mph (US) |
| Motor Type |
Mid-Drive |
| Motor Torque (Nm) |
85 Newton meters |
| Battery Type |
Lithium Ion |
| Battery Capacity (Wh) |
725 watt hours |
| Battery Removable |
Yes |
| Charge Time (hrs) |
2.3-6 hours |
| Pedal Assist Range |
52-91 miles |
| Mountain Bike Style |
Fat-tire |
| Frame |
Tern Orox, 6061-AL, patented design, EFBE tested and approved |
| Step-Through |
No |
| Bike Suspension |
No Suspension |
| Fork |
Atlas X, butted chromoly steel, EFBE tested and approved |
| Crankset |
Tern Orox custom |
| Bottom Bracket |
Motor Integrated |
| Shifters |
Shimano Deore, 1 x 12-speed |
| Rear Derailleur |
Shimano Deore XT Shadow+ |
| Rear Cogs |
Shimano 10-51T, 12-speed |
| Number of Gears |
12 gear(s) |
| Brake Type |
Hydraulic Disc Brake |
| Brakes |
Magura MT5, 4-piston hydraulic disc, 203 mm rotor |
| Brake Levers |
Magura MT5, hydraulic |
| Rims |
Tern Atlas X, custom doublewall construction |
| Front Hub |
Tern Atlas X, CNC body, disc cooling fins, Boost thru axle, integrated Tern Tool with 5 mm hex/T20 Torx |
| Rear Hub |
Tern Atlas X, CNC body, disc cooling fins, Boost thru axle, Syntace X-12 standard |
| Wheel Size |
27.5 inches |
| Tires |
Vee Snow Ball, 27.5 x 4 in. |
| Tire Width |
4 inches |
| Handlebar Shape |
Riser Bar |
| Handlebar |
Level Nine, AL-7050, 800 mm, riser, eMTB approved |
| Stem |
Level Nine, 45 mm (M), 65 mm (L), Syntace VR-3 certified |
| Seat Post |
Syntace P6 AL7050, 34.9 mm, Syntace VR-3 SP-approved |
| Saddle |
Ergon SM, E-Mountain Sport, chromoly rail |
| Pedals |
MTB, nonslip |
| Headset |
FSA, 1.5 in., angular-contact bearings |
| Chain |
KMC 12-speed, for e-bike, EPT corrosion-resistant coating |
| Weight |
Bike without battery: 73 lbs. 3.2 oz. |
